Autofeed Weighing & Mixing System

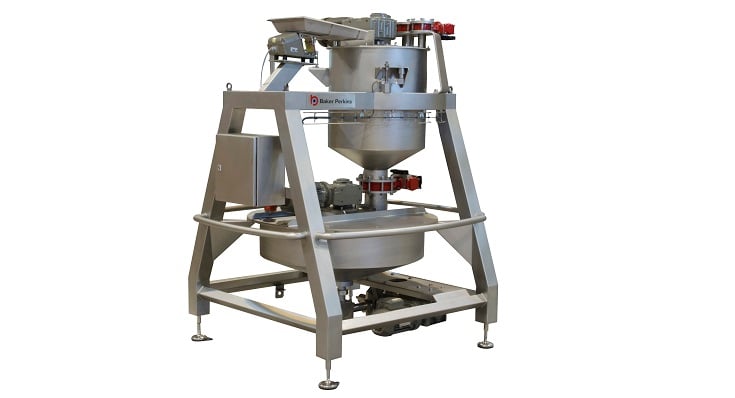

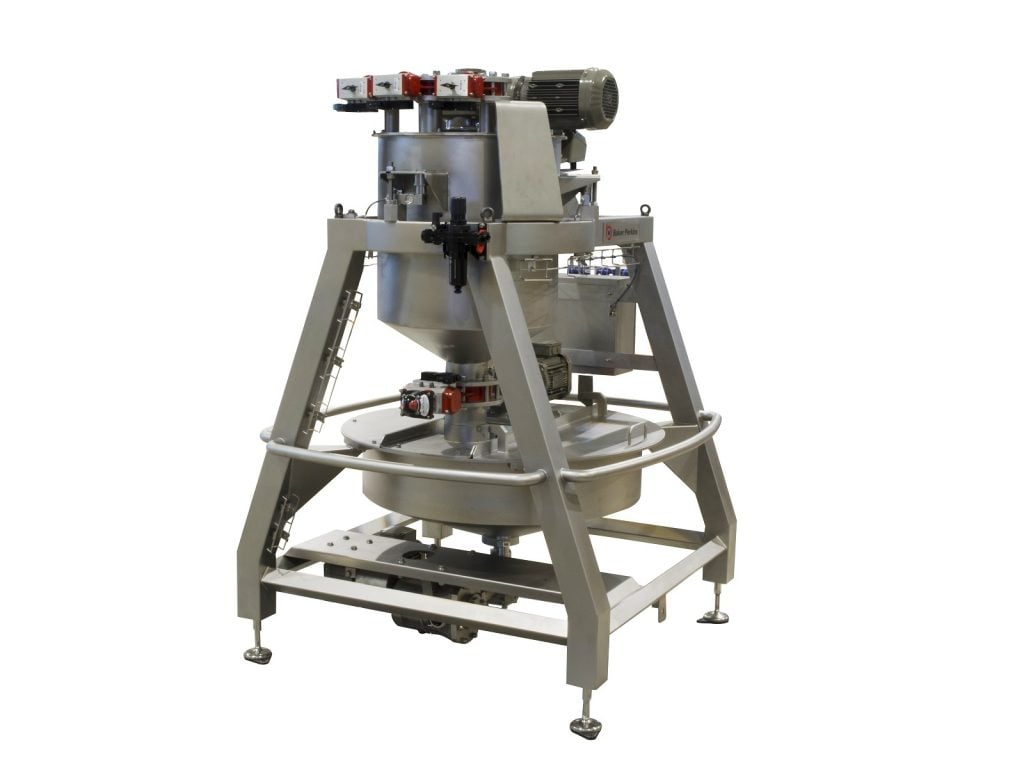

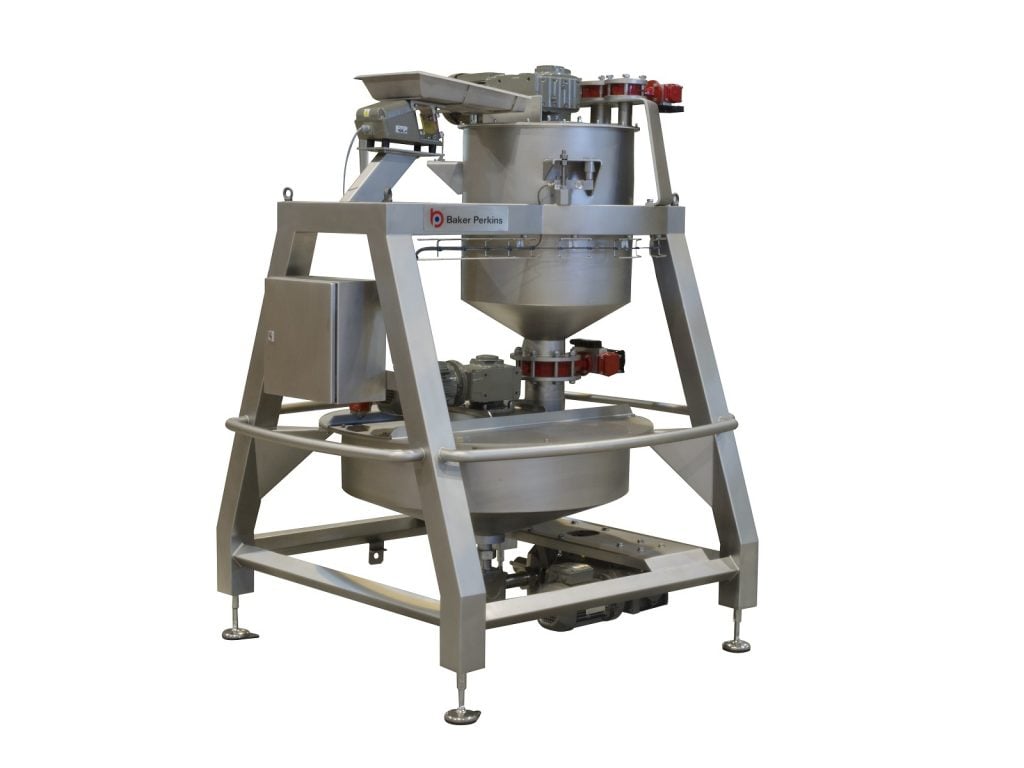

An Image of an Autofeed Weighing and Mixing System

The Autofeed is a fully automatic high-accuracy system to weigh and mix up to eight dry and liquid confectionery ingredients and feed any cooker in Baker Perkins’ range.

Efficiency and accuracy

A standard accuracy of 0.1% in a typical 180kg batch eliminates errors associated with volumetric systems. Up to eight ingredients are weighed and mixed in batches, with the reservoir tank providing a continuous feed to the cooker.

Flexibility

Up to 20 different recipes can be pre-programmed and stored, maximizing flexibility and minimizing operator involvement and error.

Tight control

Full batch reporting ensures tight cost control so the use of every ingredient can be accurately calculated.

This is part of the medicated gummy machine and gummy manufacturing machine production lines.

Autofeed Weighing & Mixing System Specifications

Performance

Output: up to 6,000kg/hr
Batch size: 180kg (200l tank)
Reservoir tank: 150l
Cycle time: 8 minutes

Inlets

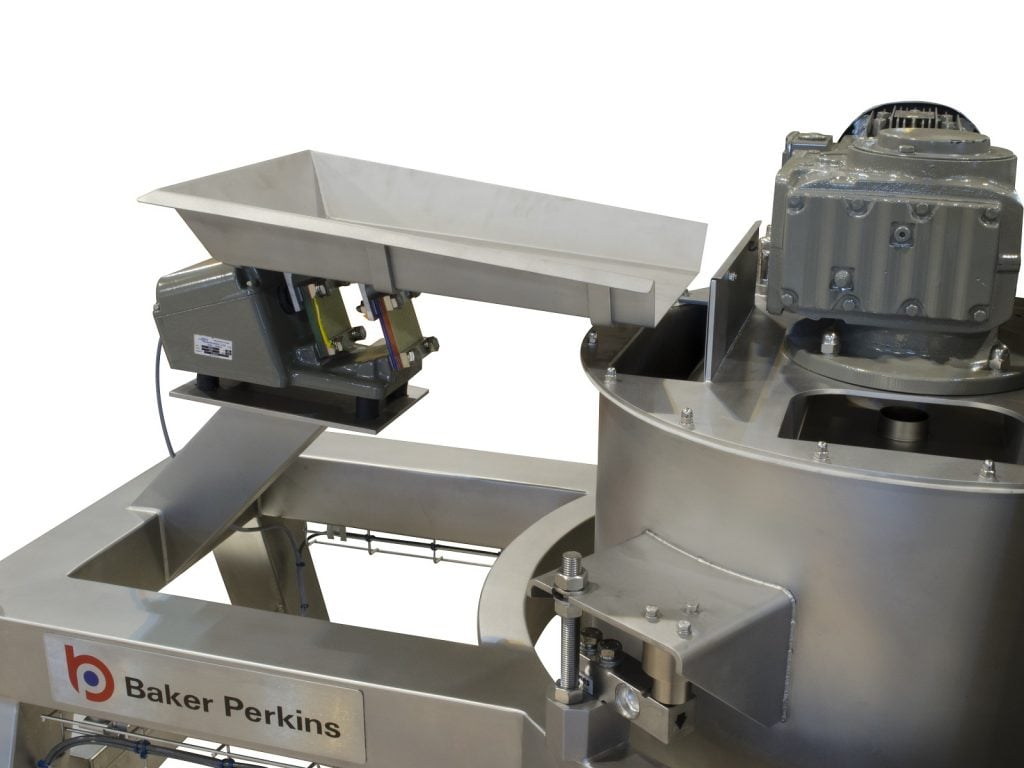

One vibratory chute for granulated sugar
One solenoid operated water valve
Three electro-pneumatic valves for liquid ingredients.

Construction

Frame: 304 stainless steel
Weigh tank: 316 stainless steel
Reservoir tank: 316 stainless steel with heated base and insulated sides
Product contact parts: 316 stainless steel

Options

Fully jacketed weigh and reservoir tanks for low water recipes
400l or 600l reservoir tanks
Tank and metering pump skids for minor liquid ingredients (e.g. brine and lecithin)
Powder feeder
Polyol dissolving unit to handle sugar-free syrups
Automatic CIP (Clean-in-Place) system – improved cleaning with less water
Heavy-duty mixer for high-viscosity slurries and high outputs
Multiple outlets
Twin tanks to avoid cross-contamination of
