JellyCook™ Batch Cooker | Confectionery

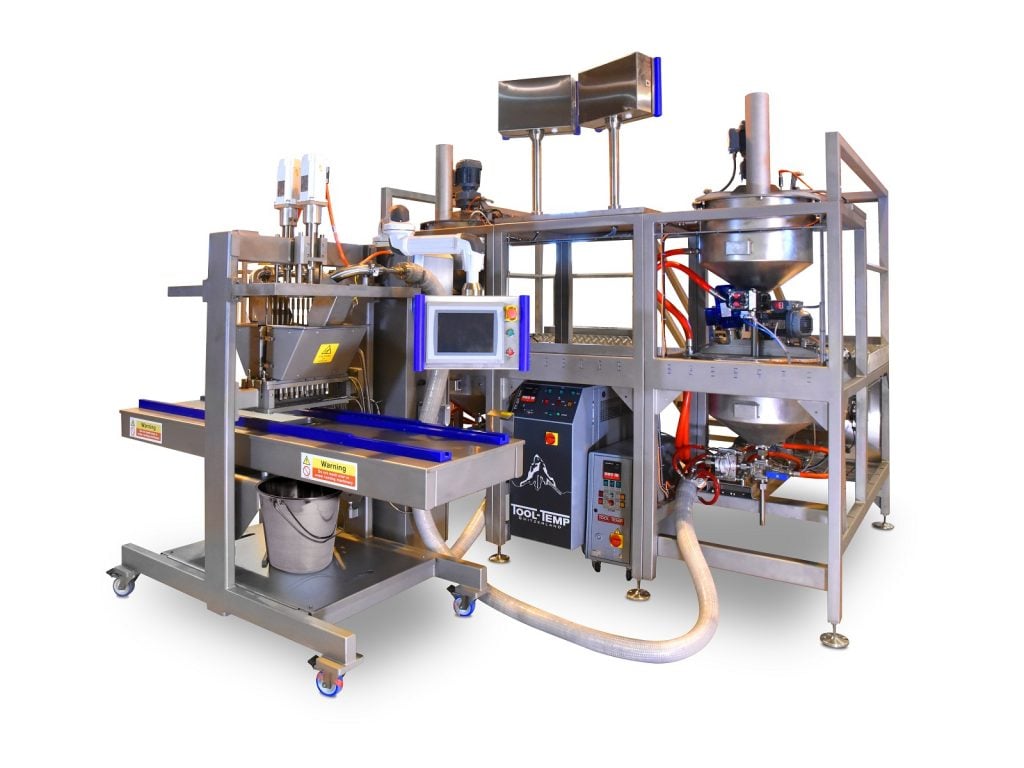

The JellyCook™ batch cooker brings the benefits of starch-free production of gummies and jellies to companies operating in healthcare, supplement and confectionery markets. It is designed to feed a 50kg/hour ServoForm™ Mini depositor.

Integrated system

JellyCook™ is a flexible, integrated batch weighing, mixing and cooking system to make a gummy production line. Confectionery using gelatin, pectin, carrageenan or blends as the gelling agent can all be handled.

Output options

The range of semi-automatic JellyCook™ units offers 10 to 30kg batch sizes, with outputs up to 60kg/hour; a high output model with two cookers will produce 100kg/hour.

Easy to operate

Simplicity is a decisive benefit with all operator actions prompted by messages on the HMI screen. The system consists of an oil-heated stainless steel cooking vessel with a variable speed mixer / stirrer, a reservoir tank and a support frame with operator platform.

JellyCook™ Batch Cooker Specifications

Configurations

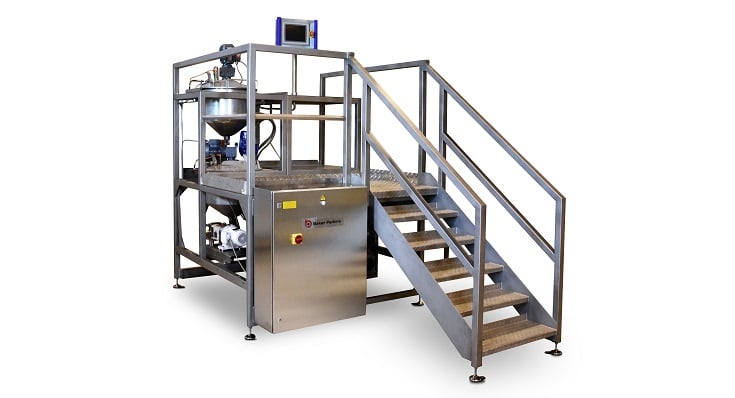

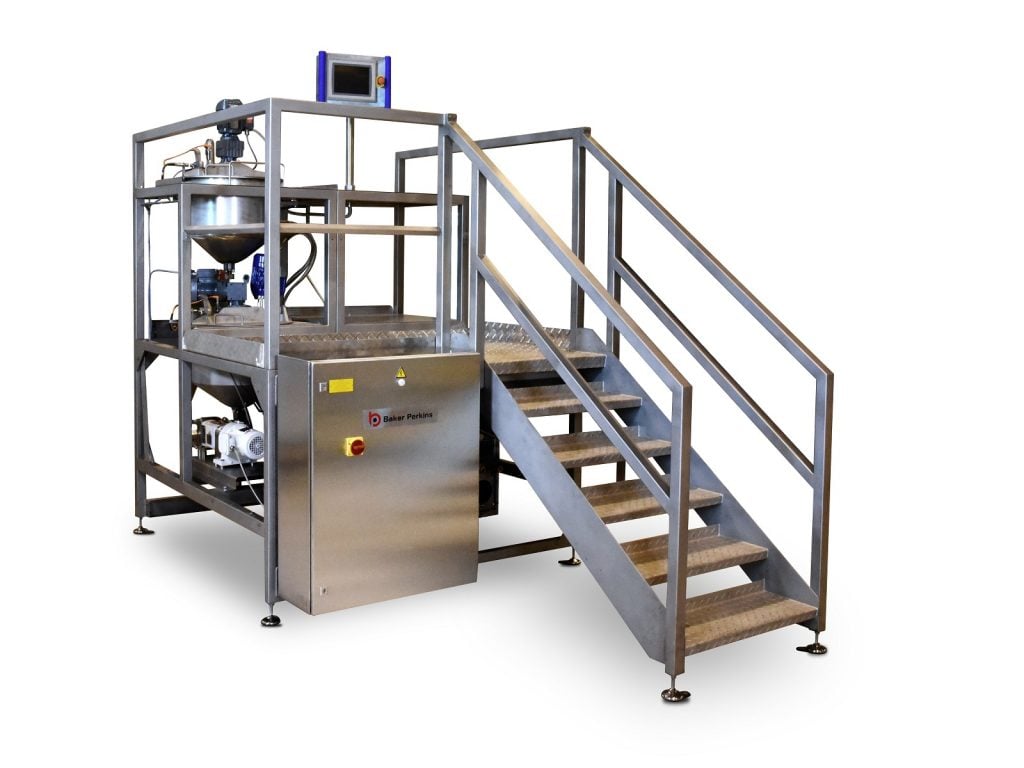

JellyCook™

Standard module consisting of one cooker and one reservoir tank
Output of 50kg/hr based on pectin “all in” recipe
25min cook
Optional pumped discharge to depositor

JellyCook™ Max

Higher output version of JellyCook™ consisting of two cookers feeding into a single reservoir tank
Output of 100kg/hr
Optional pumped discharge to depositor

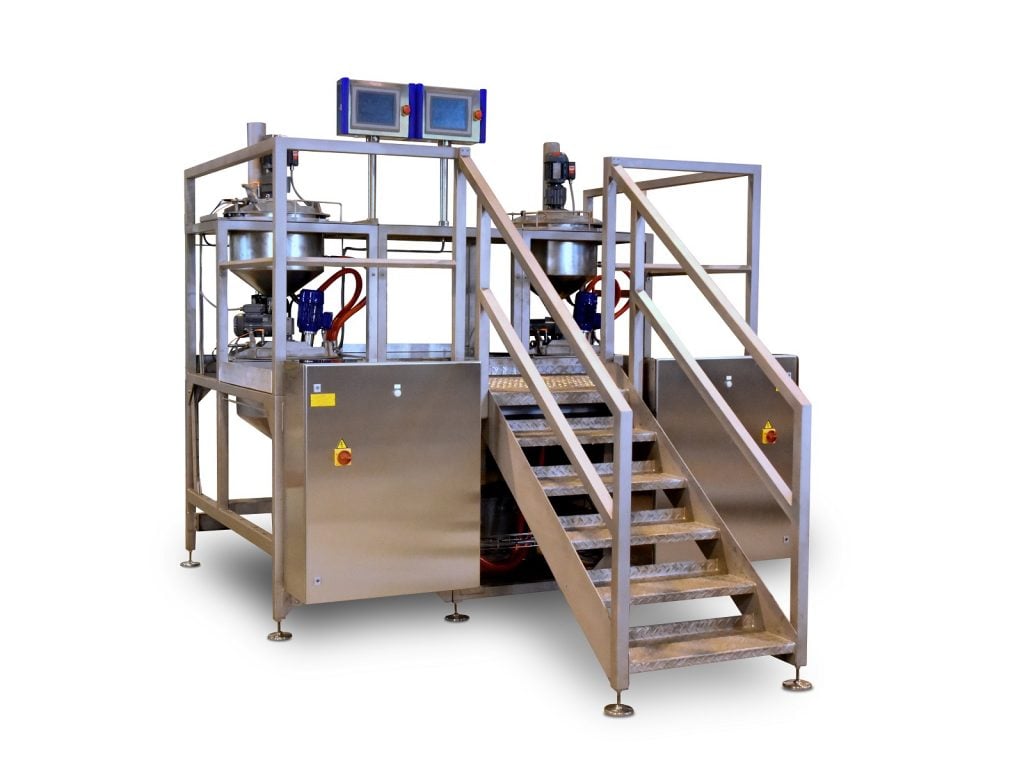

JellyCook™ Duo

Output to 100kg/hr
Consists of two modules, each containing a cooker and reservoir tank
Modules can be operated independently, in sequence, or together for throughput or recipe requirements
Independent operation of modules allows for two recipes or products to be cooked simultaneously, and enables feed to separate depositors

Features

Outputs up to 60kg/hr (10-30kg batches)
Variable speed mixer / stirrer
Even cook temperature
Intuitive HMI with guided cooking prompts
Mounted on a hygienic stainless steel frame with operator access and storage areas
Suitable for floor or mezzanine installation with manual, pumped or gravitational transfer to the depositor

JellyCook™ Batch Cooker Gallery

JellyCook™ Batch Cooker Further Reading

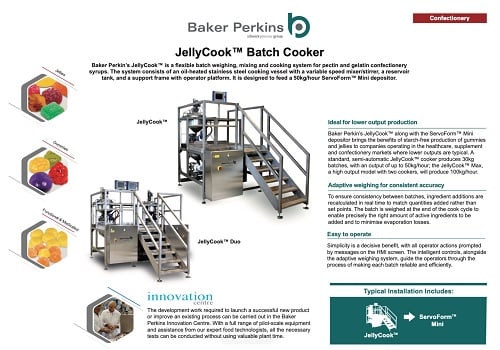

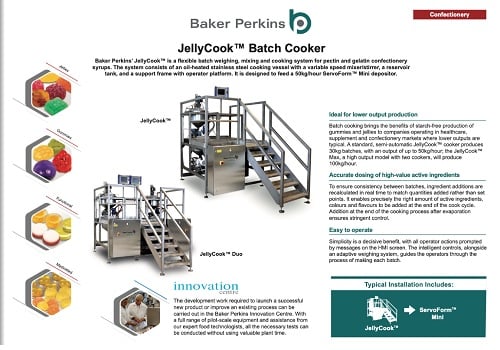

eSheet - JellyCook™ Batch Cooker

Brochure - Confectionery Cooking & Depositing Systems
