1.75 Turn Conical Rounder

  • Stock Model Specification

    Current location: Grand Rapids, MI

    For further information, or to request a quote for this machine, please contact Kari Patton:

    email: Kari.Patton@bakerperkins.com

    Tel: +1 616 785 7503

    Specification

    Frame

    Stainless steel structure with grooved steel conical table with non-stick coating

    Adjustable coated aluminium moulding troughs in segments, with numbered settings indication

    Turn

    1.75 turns around the rotating cone, giving discharge at 90° to infeed

    Rotation

    Clockwise rotation, when viewed from above.

    Height

    Leg lengths to give an infeed conveyor height of 700 mm and a discharge height of 1165mm

    Drive Components

    Belt drive from integral geared motor with driven, spring loaded discharge cone

    Air

    Air distribution within frame legs, with nozzles to dry contact parts and also supplied with a set of external air pipes to route the additional volume of air down to the moulding troughs from machine mounted 1400cfm fan

    Electrical Controls

    Junction box with emergency stop button and on-board control panel

    Also Included

    One(1) Increased Air Flow to The Conical Rounder

    The Conical Rounder will be supplied with a set of external air pipes to route the additional volume of air down to the moulding troughs from machine mounted 1400cfm fan.

    One(1) On-Board Controls For The Conical Rounder

    An on-board control panel, with control and contactors for main drive and fan.

    Read more:

    Full specification

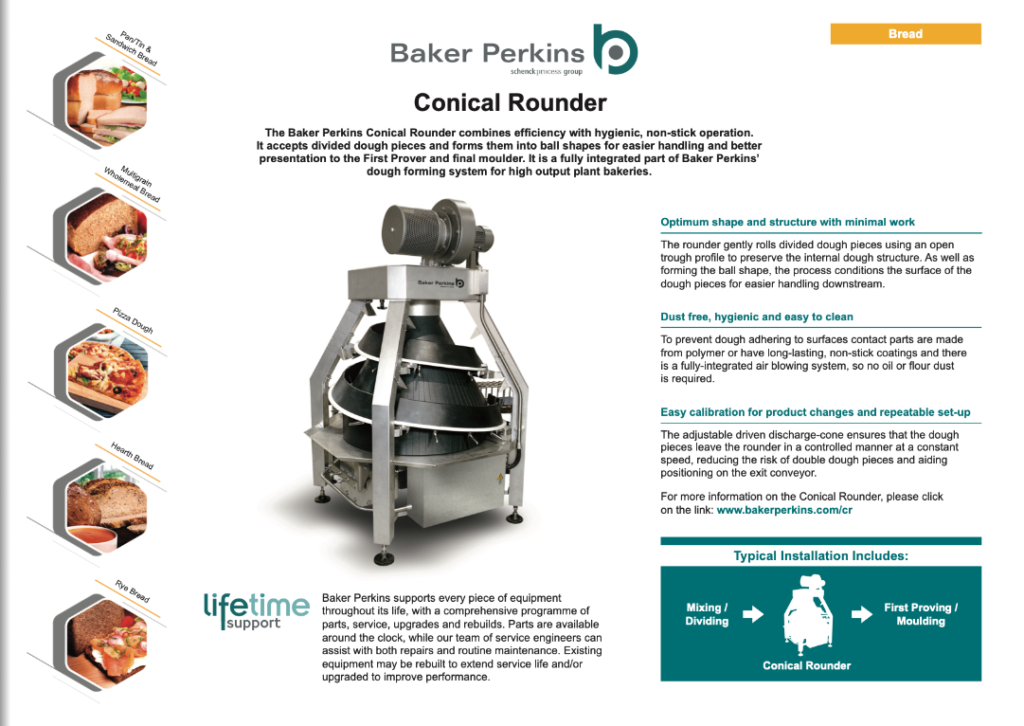

eSheet: Conical Rounder
